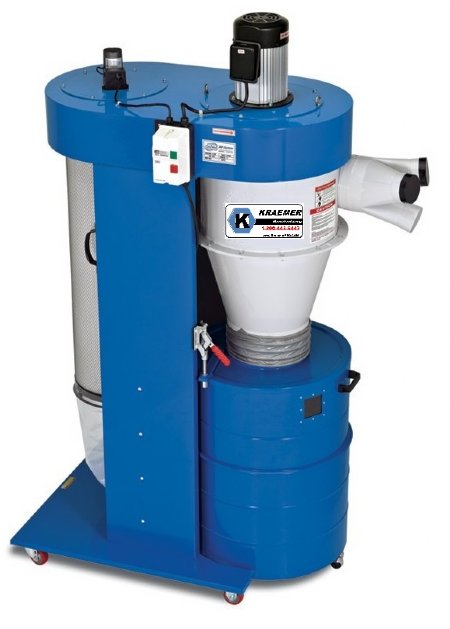

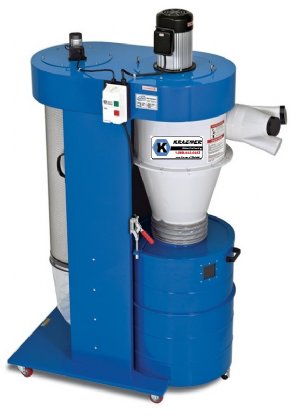

SW-3CYN-B Portable Woodworker Cyclone

Our Products: Kraemer Dust Collector > Woodworker Pro Series
SW-3CYN-B Portable Woodworker Cyclone
SW-3CYN-B Portable Woodworker Cyclone
SKU: SW-3CYN-B
Weight: 400 lbs
Brand: Kraemer Mfg
With more features and more performance, Kraemer MFG is raising the bar for 2-stage Cyclone Dust Collection. The 3HP Cyclone has the most features and is the highest performing 3HP Cyclone in the industry. The TEFC motor has an aluminum housing that keeps it cooler and helps it run more efficiently. The ™Turbo-Fan™ impeller produces more CFM then any other collector on the market when placed under high amounts of resistance. This is important because in a shop environment the dust collector must overcome the resistance of the duct work and machinery. Removing the steel drum is quick and easy, just lift up the drum lid lever and slide out the drum. The drum is on wheels and has a window on the side so you can see how much dust you are creating and when you need to empty the drum. The ™Bag Gripping Frame™ will allow disposable bags to be used in the drum. The frame will keep the bag shape in the negative pressure environment. RF Remote Control included.
List Price: $3,789.00
Price: $3,549.00
You Save: $240.00 (6%)
Add to Wishlist Add to Wishlist
Previous Item Previous Item   Next Item Next Item

Specifications

SW-3CYN-B Portable Woodworker Cyclone style dust collector

The 3HP Cyclone has a one micron efficient canister to ensure that fine dust doesn't get back into the shop. The self cleaning canister filter is equipped with its own motor that automatically turns on when the cyclone is turned off. The motor will rotate "flappers” around the inside of the canister knocking off any dust that forms on the inside of the filter.

Keep your shop clean with High Performance Dust Collectors.



  • Compact Cyclone design allows for a 55 gallon collection system while still standing only 86 inches tall!
  • The self cleaning 1 Micron Canister is equipped with its own motor.
  • New and Improved "Turbo Fan" impeller is larger, resulting in more Power!
  • 2300 Max CFM!!!
  • Quick connect drum lid lever makes removing the steel collection drum quick and easy!
  • The 3 HP Cyclone is now portable!!
Specifications

Motor:
3HP / 220V / 60Hz / 1 Phase
AMP:
18
RPM:
3450
Max CFM:
2300
Max Static Pressure:
16.2"
Impeller Size:
15.8"
Inlet Diameter:
One 8" / Three 4"
Drum Capacity:
55 Gallon (Steel Drum)
Switch:
Magnetic
Decibels:
78dB
Canister Filter:
1 Mic.(Spun Bond Polyester)
Filter Surface Area:
70 Square Feet
Length:
48"
Width:
31"
Height:
86"
Weight:
397 lbs
