Kraemer Manufacturing
1-800-443-6443

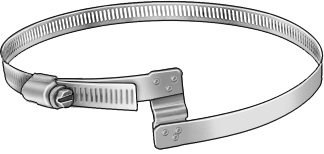

Bridge Clamp - 5" Right Hand

Our Products: Kraemer Parts > Clamps & Brackets
SKU: KM45955K72
Brand: Kraemer Mfg
Duct Hose Clamp for Spiral Duct, Right-Hand Direction, 4-1/4" to 5-3/4" Clamp ID Range. Also known as bridge clamps, these worm-drive clamps align with the spiral support on wire duct hose to provide a tight seal. Note: When choosing a clamp, measure the outside diameter of your hose with the fitting installed.
List Price: $28.48
Price: $21.09
You Save: $7.39 (26%)
Add to Wishlist Add to Wishlist
Bridge Clamp - 5" Right Hand
Bridge Clamp - 5" Right Hand
Previous Item Previous Item   Next Item Next Item

Product Use

For Use With Flexible Duct Hose
Clamp Type Worm Drive

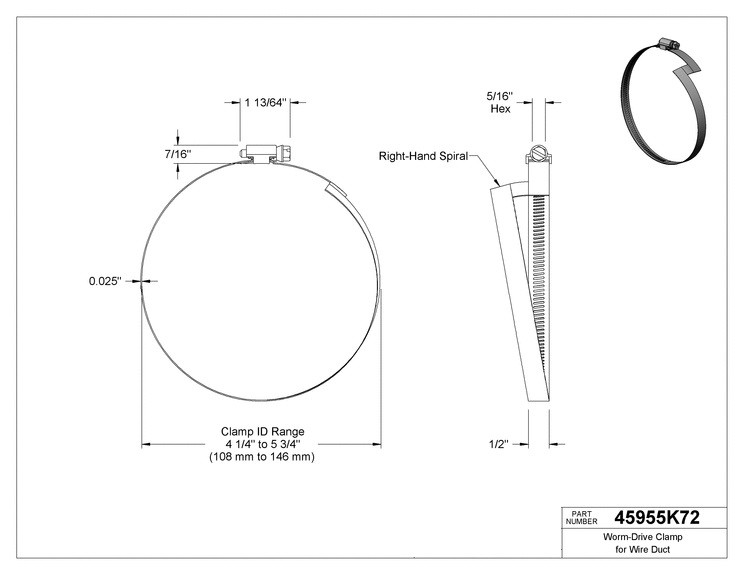

Clamp ID Range
Inch 4 1/4" to 5 3/4"
mm 108 to 146
Band
Width 1/2"
Thickness 0.025"
Temperature Range -250 to 500 F
Maximum Torque 35 in.-lbs.
Drive Style Slotted External Hex
Hex Size 5/16"
Reusable Yes
Material 301 Stainless Steel
Housing Material 301 Stainless Steel
Screw Material 305 Stainless Steel
For Spiral Direction Right Hand
RoHS Compliant
