Magnetic Switch or Motor Contactor

Our Products: Kraemer Parts > Clamps & Brackets
SKU: MS105
Brand: Kraemer Mfg

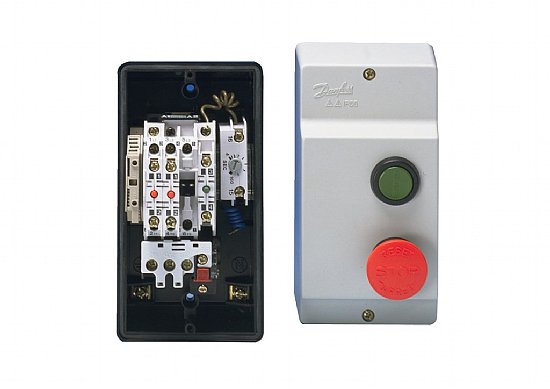

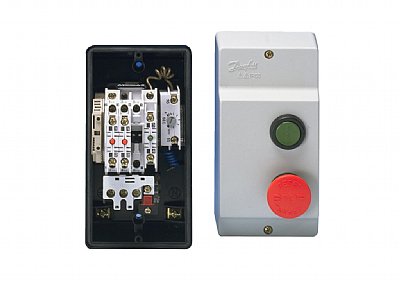

The on/off control switch is a magnetic contactor and motor starter to provide trouble-free switching and maximum protection for your costly motors and other electrical equipment. The components are compact, easy to install and extremely reliable. They have been designed to meet our customers requirements, based on comprehensive application experience. More than sixty years of manufacturing experience ensure that our contactor and motor starters stand out with regards to quality and long life.
List Price: $525.00
Price: $499.00
Availability: Currently Out of Stock
You have 8 characters left. Do not use HTML. You have 150 characters left. Do not use HTML.
Add to the cart Add to Cart
Add to Wishlist Add to Wishlist
Magnetic Switch or Motor Contactor
Magnetic Switch or Motor Contactor
Previous Item Previous Item   Next Item Next Item

Specifications

CIM, Direct on-line (DOL) motor starters

The CIM motor starter is a direct on-line unit, consisting of a contactor with a start contact, if appropriate, mounted in an enclosure with stop/reset button or with start & stop/reset buttons. In order to keep a minimum and flexible stock, the thermal overload relay must be ordered separately & related to the actual full load current of motor.
  • Max. 4 - 11 kW (Range)
  • CIM 9-25 (wall mounted):
  • Stop/reset
  • Start-stop/reset
  • Control voltage: 230-415V / 50 Hz
TYPE CODE CIM 9 - CIM 25 (Range)
WEIGHT 0.704 Kg - 0.772 Kg (Range)
AC-3 POWERAC-3 4,0 kW -11,0 kW
APPROVAL CE
COIL VOLTAGE, 50 HZ 220 - 240 V
EAN NO. TBA
MAX. LOAD, AC-3 9,0 A - 25,0 A (Range)
PACK FORMAT Multi pack
PROD. GROUP Contactors and motor starters
PROD. NAME MOTOR STARTER
PUSH BUTTONS Stop/reset
PACK QTY. 1 PC
